All-in-one AHD KIT

Main processorNT98321
Monitor qualityVGA(1080P at most);HDMI(1080P at most);CVBS
Preview ability4*5M-N@20fps(6 in 1)/4*4M-N@30fps(6 in 1)/4*1080P(6 in 1)default:5M-N
Encode ability4*5M-N@20fps(6 in 1)/4*4M-N@30fps(6 in 1)/4*1080P(6 in 1)default:5M-N
Decode ability4*5M-N@20fps(6 in 1)/4*4M-N@30fps(6 in 1)/4*1080P(6 in 1)default:5M-N
Multi-mode inputAnalog:4*5M-N

hybrid:4*5M-N(analog)+2*1080P(network) network:16*1080P;8*5M
Digital to analog conversionUnsupport(except hybrid mode)

Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set
Motion Detection(Limited local channel)
Audio compression G.711A
Intercom support
Record mode manual>alarm>motion detection>timing
Local Playback 2ch(analog input mode)
Search mode Search by time, calendar, event, channel
Video storage HDD, network
Backup mode Network, USB hard disk, USB burner, SATA burner
Video input 4ch BNC
Video output 1ch VGA, 1ch HDMI
Loop VoutN/A
Audio I/O2021-4-1
Alarm I/O0/0
Network interface RJ45 10M/100M self-adaption
PTZ control Support kinds of PTZ protocols
USB 2* USB 2.0 ports
HDD 1*SATA ports (Support up to 2 SATA interfaces,Maximum support 14T)
Wireless 3G, WIFI (extend via USB)
Power supply 12V/2A
Power Consumption <15W (without HDD)
Working environment Temperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—106kpa
Resolution2MP 3MP 5MP
Signal SystemPAL/NTSC
Electronic Shutter1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ratio ≥50dB

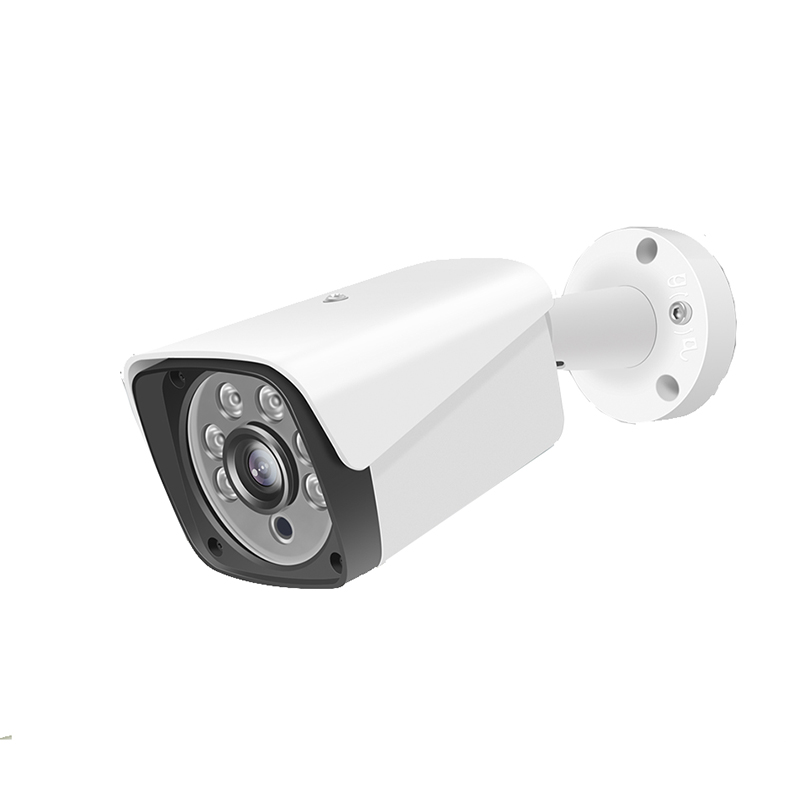

Camera Features
Infrared LED6PCS  36PCS
IR Distance25m
Infrared Wave Length850nm
Minimum Illumination0 Lux (IR LED on)
Focal Length3.6mm
Focus ControlFixed Lens
Lens TypeFixed Lens
Pixels2.0M 3.0M 5.0M Pixels
Weatherpoof HousingIP66
OSD ManualOptional
Power Supply12VDC(+/-10%)
Dimension177(W) x 85(H) x 80(D)mm
Shipping Weight0.65 KG
Storage Temperature-10℃ ~ +50℃ RH95% Max
Working Temperature-20℃ ~ +60℃ RH95% Max
