Product | Main board Model No. | RS-W84 | ||

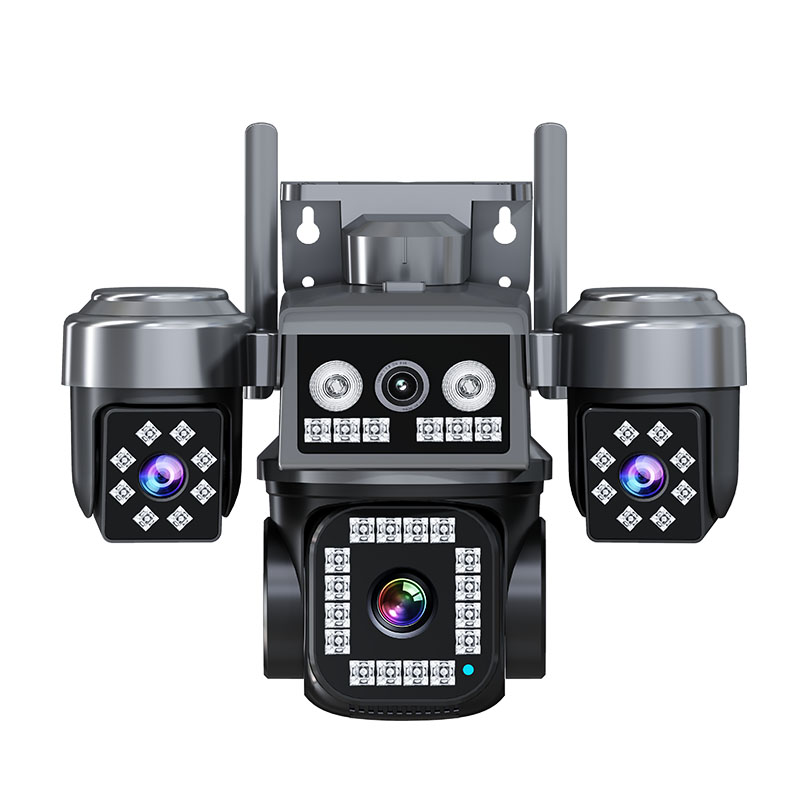

Type | Four lens Bullet/PT module | |||
System | Main processor | H610 | ||
Operating system | Embedded Linux operation system | |||
Video | Sensor | Four lens 1/3.2 CMOS Sensor | ||
Video coding standard | H.265+ | |||
System standard | PAL 50HZ/NTSC 60HZ | |||
Effective resolution | 8MP(1920*1080P*4) | |||
Video frame rate | Self-adaption | |||
Video stream | 135kbps-2048kbps | |||
Minimum illumination | Day mode 1Lux, night vision mode 0.01Lux | |||
Day and night mode | Auto | |||
Capture function | support | |||
Audio | Coding standard | G.711U | ||
Audio input | External microphone MIC, analog MIC with S/N ratio of 42DB | |||
Audio output | External 8Ω/MAX 1.5W speaker | |||
Voice Call | With AI echo cancellation, support full-duplex voice calls | |||
Record management | Record mode | alarm recording, timing recording | ||
Record storage | TF card/PC/NVR | |||
Cloud storage | Support |
|
Alarm | Alarm detection | With 1T computing power, accurate human detection, detection distance up to 30 meters | ||
Sound and light alarm | Support, when equipped with dual light board, supports sound and light alarm | |||
Alarm Voice | Support text-to-speech and customized voice functions | |||
Red and blue lights | When alarm is supported, the red and blue light flashing alarm is triggered. | |||
Alarm linkage | Video recording and image capture | |||
PTZ | Preset position | Support 6 preset position settings | ||
Tracking Function | Support human tracking | |||
Night light | Night light function | Support night light function | ||
Network | RJ45 | HTTP,TCP/IP,IPV4,UPNP,RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, IP Search(Support P6S IP camera, DVR, NVS and etc.) | ||
WIFI-6 | IEEE 802.11b/g/n/ax, 802.11n 20MHz/40MHz bandwidth, support 802.11ax 20MHz bandwidth | |||
BLE | Support Bluetooth quick network configuration function | |||
NearLink | Support SLE 1.0 | |||
Protocol | P6S, Onvif | |||
APP | APP | P6SLite | ||
others | TF card capacity | Maximum support 256GB(Universal FAT32 format) | ||
Operating Voltage | Standard DC-12V | |||
Working current | 185mA ±10mA | |||
Working environment | -20℃ --- +55℃ | |||
Size | Main board | 52mm*38mm | ||
Sub-board | 38*38mm (suitable for bullet/PTZ products)/28*28mm (suitable for dual lens Pan-tilt machine products) | |||
ICR/LENS hole distance | 20mmm |
