System Structure

dual-core 32-bit DSP（  RV1106G2）,pure hard compression ,watch dog

Sensor

2*1/3" Low illumination CMOS Sensor

Min. Illumination

Color ：0.01Lux @(F1.2,AGC ON); 0 Lux with IR

Black/White: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR

Video Compression

H.265AI

Image Output

Main stream: 1920*2160@12fps    ; Sub-code stream ：800*896@12fps

Shutter

1/50(1/60)s to 1/10,000s

Day&Night

Support dual-light full-color night vision

DNR

Support 2D/3D noise reduction

WDR

Support

Audio Process

G.711A codec standard, support dual voice talkback, audio and video synchronization

Audio Interface

1 channel input, support microphone input; 1 channel output, support speaker output playback

Network Interface

1*4G interface, support 4G CAT1 network connection

Signal Interface

1*photoresistor interface, 1*IR-CUT driver interface, support photoresistor input signal and IR-CUT IR lamp linkage

Motor Interface

1* horizontal motor interface, 1*vertical motor interface

Reset Interface

1*reset interface

TF card interface

1*TF card interface

Storage Mode

Local TF card, up to 256G; cloud storage

Reliability

Comprehensive lightning protection, in line with national and international standards; 3*24 hours high-temperature test stability and reliability

Smart Alarm

Supporting human detection, support to customizing other intelligent functions

Functions

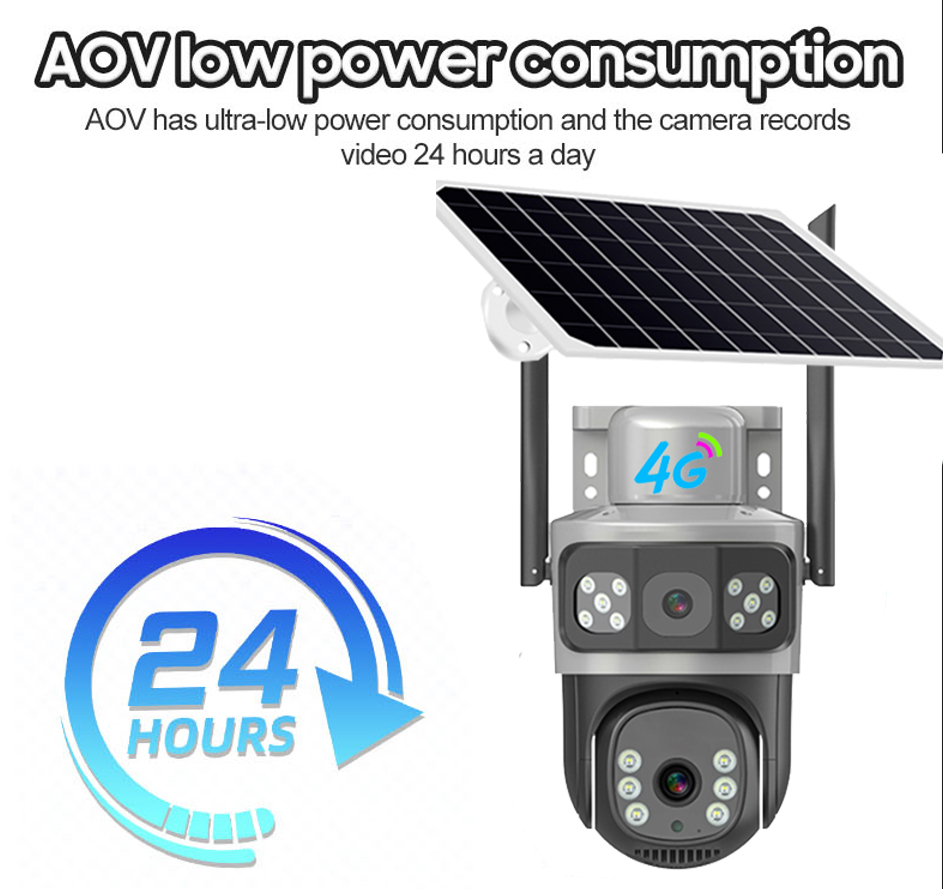

Support dual-light full-color night vision; Support 1 second 1 frame recording (AOV state) + full frame rate recording (wake-up state); Push alarm messages; Support MJPEG capture;

ONVIF

support

Mobile Monitoring

Support（iOS，Android）

Power Supply

4.2V lithium battery power supply

Dimension

52mm*66.5mm+38mm*38mm
