| Chipset | HI3536E |
| Operation system | Linux system |
| Interface |
| Operation | 16-bit graphical operation interface, support mouse/keyboard operation |
| interface |
| Image display | 1/4/6/9 screen |
| Video |
| Video access | 8ch 5MP |
| Video frame | @30fps |
| Video output | VGA*1, HDMI*1 |
| Image decoding | H.264/H.265/H.265+ |
| Privacy masking | Yes (need front-end camera support) |
| Motion detection | Yes (need front-end camera support) |
| Intelligent function |
| AI alarm | Support humanoid + face detection function, linkage push, big screen and other alarm functions (need to connect to humanoid + face detection module) |
| AI playback | Support AI human face playback function, playback is more accurate. |
| Audio |
| Voice alarm | Front-end voice alarm prompt can be set (requires front-end camera to support voice alarm prompt) |
| Voice format | G.711U G.711A G.726 |
| Audio intercom | No |
| Audio input | 1:1 network audio input according to the number of channels |
| Audio output | Support HDMI audio output, 1.25pin connect with loudspeaker sound output |
| Video playback |
| Video modes | Timing video, motion detection video, manually video, intelligent video |
| Playback channel | 8ch 3MP playback |
| Video playback | Timeline playback, humanoid intelligent playback, face playback |
| Storage backup |
| Video storage | Local hard disk, network(Easyvms remote recording) |
| Backup type | USB motion hard disk, flash disk |
| Remote monitoring |
| Mobile | Support (iPhone, Android) smart phone |
| monitoring |
| PC monitoring | Support IE ，VMS monitoring remotely |

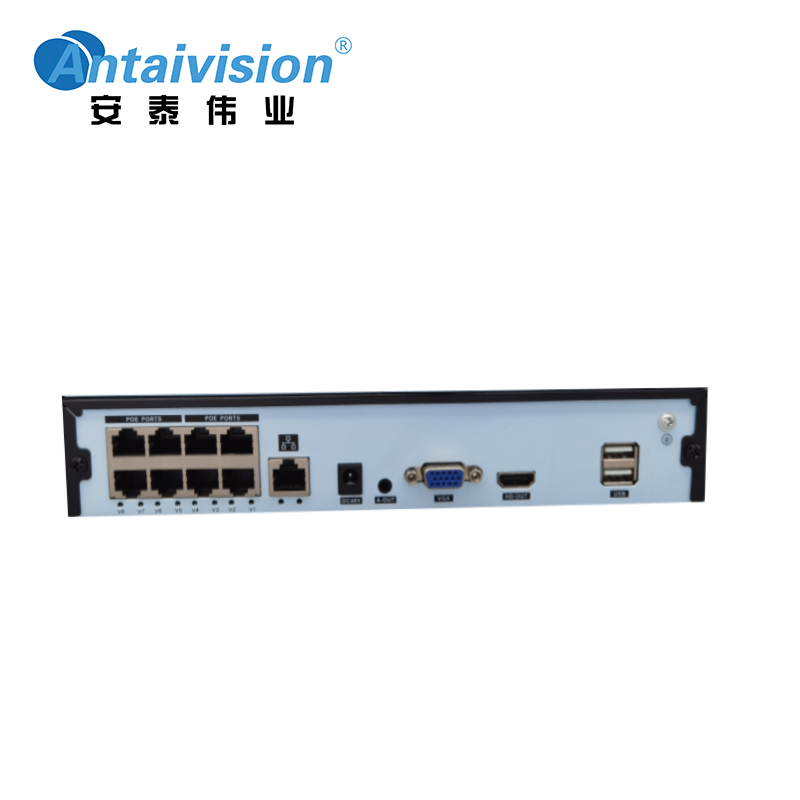

| Outer interface |
| Video output | 1pcs VGA, 1pcs HDMI |
| Network | 1pcs RJ45 10/100M, self-adaptive ethernet interface |
| POE interface |
| Power | ≦50W |
| Standard | IEEE802.3af/at |
| Power supply | 48VDC |
| Power | ≦65W |
| Consumption(without hard disk) | ≦10W(without enabling PoE) |
