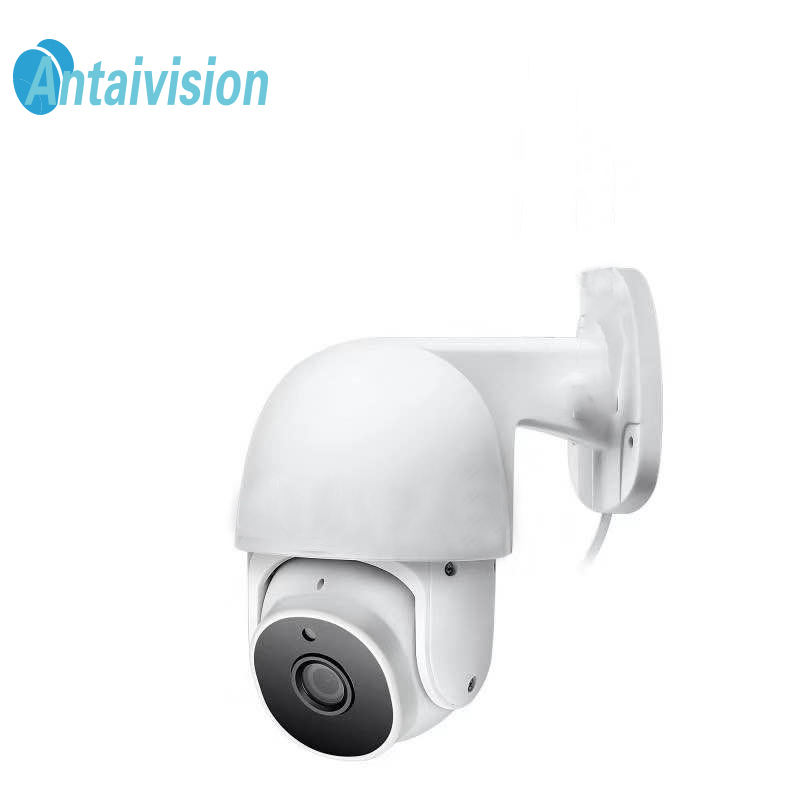

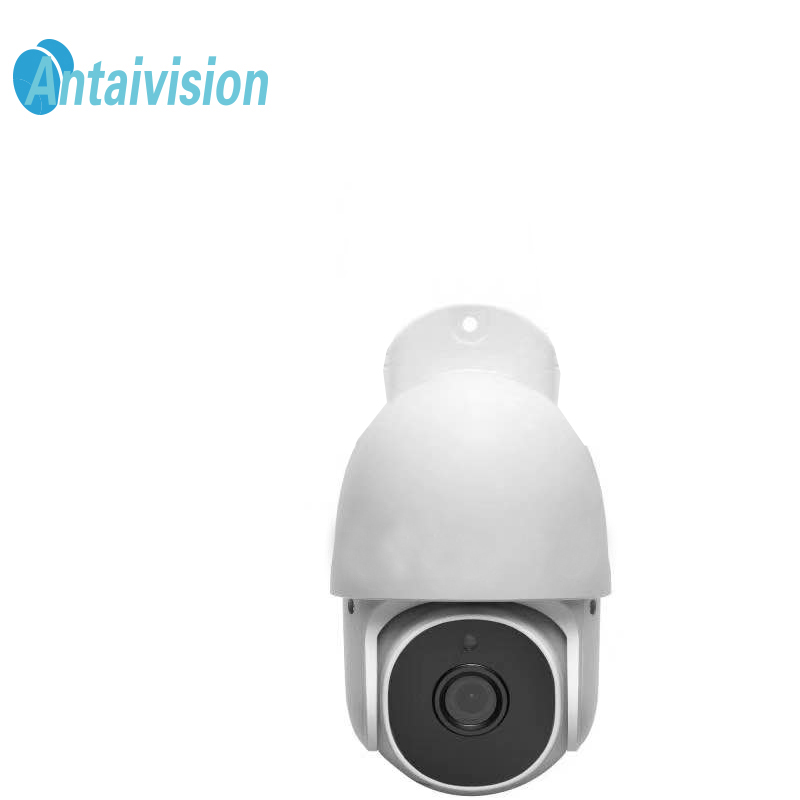

| Model | C-PTZ-501 |
| Pixels | 5MP |
| chip | XM350+K03 |
| Television Standards | PAL/ NTSC |
| IR LED | 2PCS IR LED |
| IR Distance | 30M |
| Lens | 3.6 mm |
| PTZ | Support PTZ |
| Sync System | Internal |
| Usable Illumination | 0.01Lux/F2.0 |
| IR Power On | CDS Auto Control |
| S/N Ratio | ≥65dB (AGC OFF) |
| Gamma Correction | 0.45 |
| Video Output | Composite Signal (1.0Vp-p, 75Ω) |
| Scanning System | PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec |
| Electronic Shutter | Auto: PAL 1/50-1/100,000Sec; NTSC 1/60-1/100,000Sec |
| Water resistance | IP66 |
| Operation Temperature | -10°C ~ +50°C, RH: 95% Max |
| Storage Temperature | -20°C ~ +60°C, RH: 95% Max |
| Weight | 0.26kg |
| White Balance | Auto |
| Power Supply | DC12V |
