Support a variety of cloud technologies, network penetration, front-end docking, alarm information pushed to mobile phones and other functions;
Supporting Web, CMS, central platform management software MYEYE, providing SDK development;
| Datasheet | ||

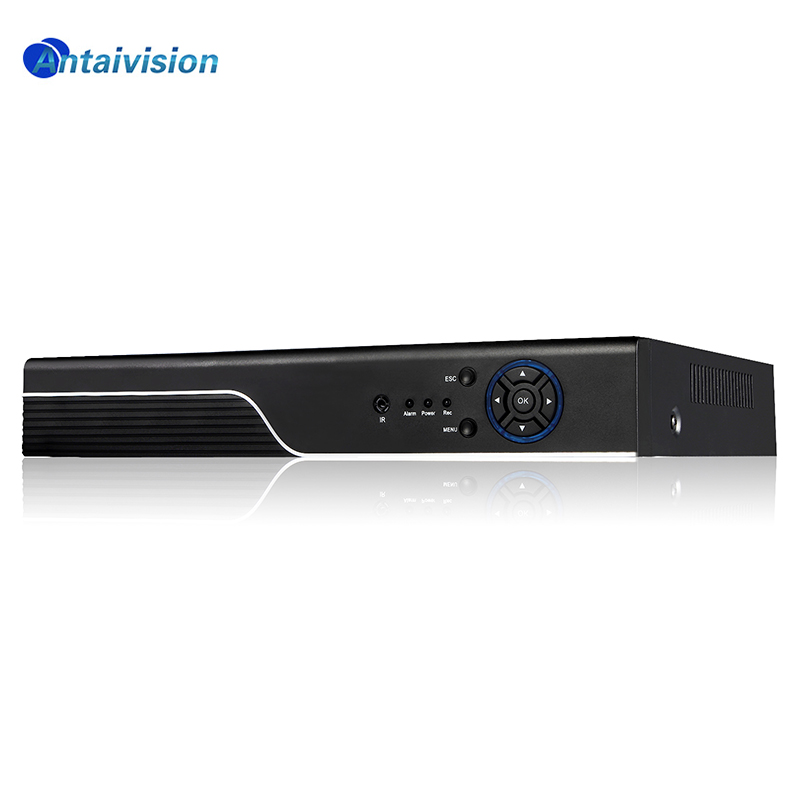

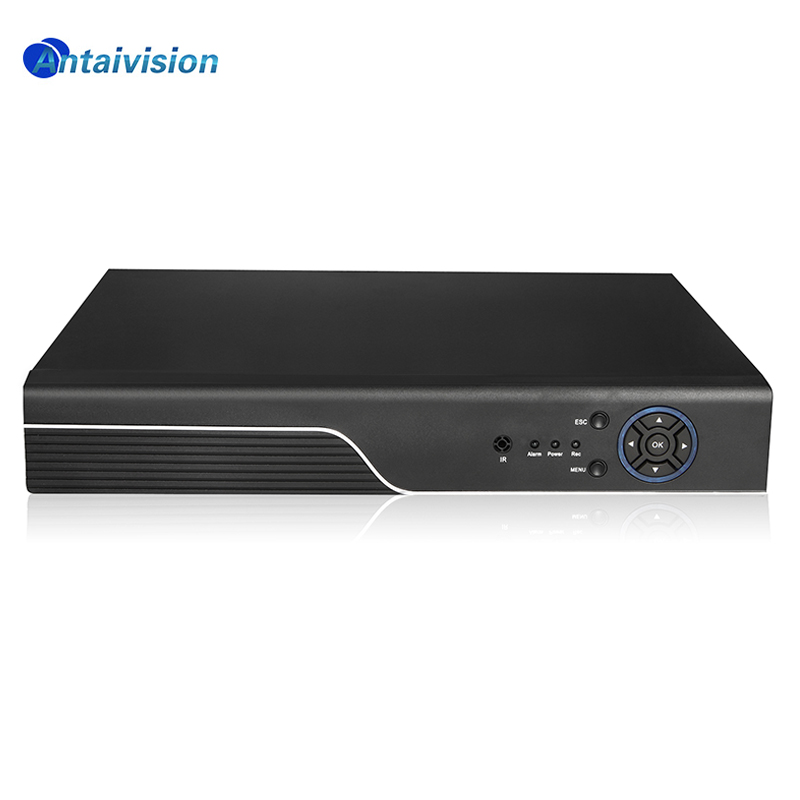

| Model | AT-BH-3216FD-T | |
| System | Main chip | Hi3521D |
| OS | LINUX | |
| Interface | Operation menu | 16-bit true color graphical menu interface, mouse operation supported |
| Display | 1/4/6/8/9/16 screen | |
| Video | Format | H.265 |
| Output | VGA、HDMI | |
| Preview | 16*5MP-N@12fps(AHD/TVI/CVI)/ 16*4MP-N@15fps/ 16*3MP-N@18fps/ 16*1080N@25fps/16*720P@25fps 5-IN-1 | |
| Record | 16*5MP-N@12fps(AHD/TVI/CVI)/ 16*4MP-N@15fps/ 16*3MP-N@18fps/ 16*1080N@25fps/16*720P@25fps 5-IN-1 | |
| Decord | 16*5MP-N@12fps(AHD/TVI/CVI)/ 16*4MP-N@15fps/ 16*3MP-N@18fps/ 16*1080N@25fps/16*720P@25fps 5-IN-1 | |
| NVR： | 4*5MP/8* 3MP/16 *1080P for all IP mode | |
| Motion Detect | Each view window can set 192（16*12）detection area,can set multi-level sensitivity (only for local channel) | |
| Audio | Audio | G.711A |
| Intercom | Support | |
| Recorind and Playback | Recording mode | Manual、Alarm、Motion Detect、Timer |
| Local playback | 16 Channel（when Analog mode） | |
| Video search | Time, Date,Event,Channel search | |
| Storage and Backup | Storage | Local HDD, Network |
| Backup | Network backup, external HDD, USB Drive, HDD | |
| Port | Video Input | 16 * BNC |
| Video Output | 1 * VGA，1 * HDMI | |
| Audio Input | 0* RCA | |
| Audio Output | 0 * RCA | |
| USB port | 2 * USB Port | |
